NEW! Ultrasonic Thickness Gauge

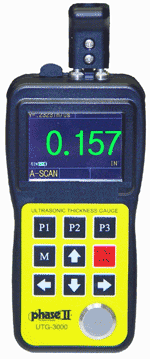

Model No. UTG-3000
Utilizing color waveform A-scan for absolute correctness, this new state of the art ultrasonic thickness gauge is packed with useful features allowing users to be confident of the displayed values on the most critical of applications. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scan with Min/Max viewing, GO/NO GOdisplay, Adjustable Gain, Blanking, Adjustable Gate and Adjustable Sound Velocity. Range adjustment, delay, and 4 waveform modes including RF, make this ultrasonic thickness gauge a true performer with confidence. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials in critical situations that ordinary ultrasonic thickness gauges couldn’t do.
The UTG-3000 ultrasonic thickness gauges will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
|
 |
|
| |
Specifications:
| Operating Principle |
Ultrasonic pulse/echo method with dual element probe |
| Display type |
2.4” Color Screen |
| Resolution |
0.001”, .01” /0.01mm (selectable) |
| Measuring Range |
0.02-20.0” (10mm-145mm) Dependant upon probe & material |
| Gain-Adjustable |
8 – 55dB (higher the gain, the higher the sensitivity is) |
| Repeatability |
+/-.001” (+/-0.05mm) |
| Sound velocity range |
0.0197-0.3937in/us (500-9999m/s) |
| Measuring Error |
0.001”(up to 0.984”)
0.007”(up to 3.03”
0.019”( 4” and above) |
| Display Modes |
Digital Thickness Readout
A-scan or Waveform
Min/Max Capture
D-Value / Reduction |
| V-Path Correction |
Automatic |
| Gate-Adjustable |
Gate ranges from 1-50mm (for A-scan only) |
| Refresh rate |
4/second |
| Operating temperature |
14-122ºF (-10ºC - +50ºC) |
| Auto Shut-Off |
After 5 minutes |
| Power supply |
3v AA alkaline batteries (2pc) |
| Operating Time |
Approx. 36 hours |
| Dimensions |
6.02” x 2.99” x 1.45” (153 x 76 x 37mm) |
| Weight |
9.9oz (280g) |
|
UTG-3000 Ultrasonic thickness gauge-Blanking |
UTG-3000 Ultrasonic Thickness Gauge – Adjustable Gate |
| |
|
UTG-3000 Ultrasonic Thickness Gauge – Configuration Mode |
UTG-3000 Ultrasonic Thickness Gauge – Alarm Mode |
| |
|
UTG-3000 Ultrasonic Thickness Gauge – Differential Mode |
UTG-3000 Ultrasonic Thickness Gauge – Min/Max Mode |
|
| |
UTG-3000 Probe Specifications:
Part No. |
UTG3000-400 |
UTG3000-475 |
UTG3000-404 |
UTG3000-440 |
UTG3000-450 |
| Probe Style |
Standard |
Small Tube |
Extreme small tube |
Rough surface/
Porous metal |
Hi-Temp |
| Frequency |
5MHz |
7.5 MHz |
10 MHz |
2 MHz |
5 MHz |
| Contact Dia. |
8mm |
6mm |
4mm |
17mm |
15mm |
| Measure range: |
.031-3.93” |
.031-1.18” |
.019-.787” |
.157-20” |
.157-3.14” |
| Temperature |
14-158ºF |
14-158ºF |
14-158ºF |
14-158ºF |
0-572ºF |
|
|
|
|
|
|
|
| UTG-3000 ultrasonic thickness gauges come complete with Certificate of Calibration, Operation Manual and Custom Carry Case. |
