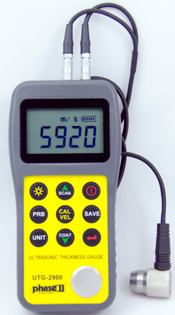

Ultrasonic Thickness Gauge

Model No. UTG-2900

Our new State of the art, digital ultrasonic thickness gauger is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.



Specifications:



Model No. UTG-2900

Display type

4.5 -digit LCD w/Back Light

Minimum display unit

0.001"/0.01mm (selectable)

Measuring Range

Pulse-Echo: 0.025" -23.0" in steel
Echo-Echo: .118" -3.50"
Can measure up to 90mm(3.5") of steel while going through 900 micron (.035") (35mils) of coating.

Accuracy

+/- (0.5% thickness + .001")

Sound velocity range

3280-32805 ft/s (1000-9999m/s)

Upper/Lower Limit Preset Alarm

Yes

Scanning Feature

Yes, 16 measurements/second

Operating temperature

32-122 degrees F

Frequency

5MHz

Update range

4Hz

Memory

20 Groups (100 files/group)

Output

USB

Power supply

AA alkaline batteries (2pc)

Battery life

Approx. 100 hours (w/backlight off)

Power consumption

Working current is less than 3V

Dimensions

5.90" x 2.91" x 1.30" (150 x 74 x 33mm)

Weight

8.6oz (245g)


UTG-2900 ultrasonic thickness gauge comes complete with Base Instrument, 5MHz Echo-Echo Probe, 2oz Bottle of couplant gel, Data Output Software, USB Cable, Certificate of Calibration, Operation Manual and Custom Carry Case.
