Ultrasonic Accessories

Ultrasonic Thickness Gauge Probe Selection:

Stock No.

Description

Compatibility

Comments

UTG2000-020

2” Inside Diameter  Probe
5Mhz - 12mm dia.  90º angle

All Phase II Thickness Gauges

For testing inside cylinders w/2” diameter

UTG2000-030

3” Inside Diameter  Probe
5Mhz - 12mm dia.  90º angle

All Phase II Thickness Gauges

For testing inside cylinders w/3” diameter

UTG2000-400*

12mm - 90º angle - 5Mhz

All Phase II Thickness Gauges

General Purpose

UTG2000-420

6mm - 90 º angle – 5Mhz

All Phase II Thickness Gauges

For testing small areas

UTG2000-440

14mm - 90 º angle – 2.0Mhz

All Phase II Thickness Gauges
except UTG1500

For testing Rough Surfaces(min thickness of .07”)

UTG2000-450

12mm - Straight – 5Mhz

All Phase II Thickness Gauges

For testing Hi Temperature
(up to 930 º)

UTG2000-475

6mm - 90 º angle – 7.5Mhz
Rigid extended probe

All Phase II Thickness Gauges
Except UTG-1500 & 2000

For testing in deep inside bores

UTG2600-400

4mm - 90 º angle - 10Mhz

All Phase II Thickness Gauges
Except UTG-1500 & 2000

For testing extremely small areas

UTG2600-410*

8mm - 90 º angle - 5Mhz

All Phase II Thickness Gauges

General Purpose

UTG2600-420

12mm - 90 º angle – 2.25Mhz

All Phase II Thickness Gauges
Except UTG-1500

For testing porous materials/rough surface

UTG2800-400*

10mm - Straight - 5Mhz

All Phase II Thickness Gauges

General Purpose

UTG2800-420

14mm - 90 º angle – 2.50Mhz

All Phase II Thickness Gauges
Except UTG-1500

For testing porous materials/rough surface

UTG2800-750

6mm - 90 º angle - 7.5Mhz

All Phase II Thickness Gauges
Except UTG-1500 & 2000

For testing porous materials & Plastics

*= Comes standard with unit
Hi-Temperature Rough Surface/Porous Materials Extreme Small Surface Internal Ports
Popular Probe Specifications:

Probe Type

PT-08

PT-06

PT-04

ZT-12

GT-12

Probe Style

Standard

Small Tube

Extreme small tube

Rough surface/
Porous metal

Hi-Temp

Frequency

5MHz

7.5 MHz

10 MHz

2 MHz

5 MHz

Contact Dia.

8mm

6mm

4mm

17mm

15mm

Measure range:

.031-3.93”

.031-1.18”

.019-.787”

.157-20”

.157-3.14”

Temperature

14-158ºF

14-158ºF

14-158ºF

14-158ºF

0-572ºF

Ultrasonic Couplant Gel

Features:

  • Water based and water soluble
  • Slow drying with good transducer lubrication
  • Extended ambient temperature range
  • Stable couplant that holds on a vertical and overhead surfaces and fills depressions in rough surfaces
  • MSDS/SDS available by request

Available in 8oz Bottle or 5-Liter Container

Part No. UTG1000-800                   8oz Bottle
Part No. UTG1000-850                   5 Liter

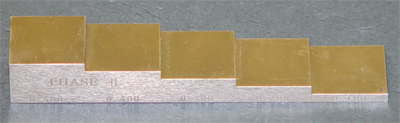

5-Step Calibration Block

Model No. UTG-0500

1018Steel                                                     .100” thru .500”
