Ultrasonic Thickness Gauge

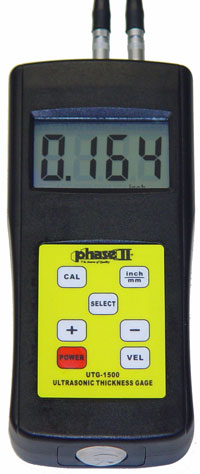

The new Phase II UTG-1500 is a “world-class” microprocessor controlled ultrasonic thickness gauge. Utilized In many areas of industry, the UTG-1500 ultrasonic thickness gauge can perform precise thickness measurements on various types of raw materials, component parts and assembled machinery. It is also commonly used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion and erosion.Specfically, these ultrasonic thickness gauges are designed for measuring thickness of metallic and non-metallic materials, as long as the top and bottom surfaces are parallel.

Economical and easy to use, the UTG-1500 Ultrasonic thickness gauges are simply calibrated to a built-in/external known thickness or sound velocity and the gauge will produce accurate and precise readings in inch or millimeter.



Technical Specifications

Display type

Large 4-digit LCD

Minimum display unit

0.001" / 0.01mm

Measuring range:

0.040" - 8in. (0.1mm-200mm) in steel w/standard probe(other values depending on material)

Lower limit steel pipes

Min. dia. 0.8in. x 0.1in. (20mm x 3mm)

Display accuracy:

+-0.1mm

Sound velocity range

1640 – 29,527 ft/s (500 - 9000m/s)

Operating temperature

32-122 degrees F (-5 – 40 degrees C)

Frequency

5MHz

Update range

4Hz

Power supply

1.5v AA alkaline batteries (4pc)

Battery life

Approx. 250 hours / battery set

Dimensions

4.9 x 2.6 x 0.9in. (161x 69 x 32mm)

Weight

0.7lbs (300g)

Operating current

<20mA (3V)



Table of basic sound velocity of various materials

Material

Sound velocity (m/s)

Aluminum

6260

Iron

5900

Copper

4700

Brass

4640

Zinc

4170

Silver

3600

Gold

3240

Tin

3230

Glass

2350



Ultrasonic Thickness Gauge Measurement

The use of Ultrasonic non-destructive testing (NDT) to check material properties such as thickness measurement, is now extensively used in all facets of industry. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications. Metals, plastics, ceramics, glass and other materials can easily be measured by portable ultrasonic thickness gauges with a common accuracy of.001”.

Ultrasonic thickness gauges measure the thickness of a part by measuring the time sound travels from the transducer through the material to the back end of a part, and then measures the time of reflection back to the transducer. The gauge then calculates the thickness based on the velocity of sound through the material being tested.

A broad variety of piezoelectric transducers, operating at given frequencies are utilized to generate sound when excited. Typically, a 5mhz frequency is standard on all Phase II Ultrasonic Thickness Gauges. Optional transducers are always available for a myriad of applications.

The direct contact method of pulse/echo type ultrasonic thickness gauges requires use of a couplant. Propylene Glycol is common, but many other substances can be used.

Easy to configure and use, many gauges today have the ability to retain memory, output to printers, PC’s, and handheld portable devices. With the combination of an easy menu driven gauge and the data in memory, technician/operators have a world of technology at their fingertips to obtain highly accurate and cost effective measurements for all types of thickness applications.

The UTG-1500 Ultrasonic Thickness Gauge comes complete with compact durable carry case, 5MHz probe, coupling gel and operation manual.
